Rexroth R901382318 4WRPEH6C4B12L-30/M/24A1

Name: Rexroth R901382318 4WRPEH6C4B12L30M24A1
Brand: Rexroth
Price: 1 USD

China Rexroth R901382318 4WRPEH6C4B12L-30/M/24A1 wholesale

Brand Name : Rexroth

Model Number : R901382318 4WRPEH6C4B12L-30/M/24A1

CertifiSAARion : ISO9001

Place of Origin : Germany

MOQ : 1

Price : On request

Payment Terms : T/T, Western Union

Supply Ability : 100PCS per month

Delivery Time : 7-10days

Packaging Details : Standard paper box

MNR : R901382318

Model No. : 4WRPEH6C4B12L-3X/M/24A1

Contact Now

4WRPEH6 and 4WRPEH10 Series Valves
4/4 directional control valves, direct operated, with electrical position feedbackand integrated electronics (OBE)

4WRPEH Size 6
Component series 2X
Maximum operating pressure 315 bar
Nominal flow 2 … 40 l/min

4WRPEH Size 10
Component series 2X
Maximum operating pressure 315 bar
Nominal flow 50 … 100 l/min

Features
4/4 directional design
With control spool and sleeve in servo quality
Operated on one side, 4/4 fail-safe position in switched-off condition
Electric position feedback and integrated electronics (OBE), calibrated in the factory
Electrical connection 6P+PE; signal input differential amplifier with interface "A1" ±10 V or interface "F1" 4 ... 20 mA (Rsh = 200 Ω)
Use for electro-hydraulic controls in production and test systems

Type code

01	02	03	04	05	06	07	08	09		10		11	12		13	14	15
4	WRP	E	H	6/10		B			‒	2X	/	G24	K0	/		M	*

01	4 main ports	4
02	High-response directional valve, direct operated	WRP
03	With integrated electronics (OBE)	E
04	Control spool/sleeve	H
05	Size 10	10
06	Symbols; for the possible version, see "Symbols/Circuit diagrams"
Installation side of the inductive position transducer
07	Valve side B (standard) (see "Symbols/Circuit diagrams")	B
Rated flow at 70 bar valve pressure differential (35 bar/control edge)
08	50 l/min	50
	100 l/min	100
Flow characteristic
09	Linear	L
09	Inflected characteristic curve	P
10	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6	2X
Supply voltage of the control electronics
11	Direct voltage 24 V	G24
Electrical connection
12	Without mating connector; connector DIN 43563-AM6 Mating connectors, separate order	K0
Control electronics interface
13	Command value input ±10 V	A1
13	Command value input 4 ... 20 mA	F1
Seal material
14	NBR seals, suitable for mineral oil HL and HLP according to DIN 51524	M
15	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

4WRPEH6 and 4WRPEH10 Series Valves Model List:
4/4 directional control valves, direct operated, with electrical position feedbackand integrated electronics (OBE)

0811404603	4WRPEH6C3B40L-2X/G24K0/A1M
0811404744	4WRPEH6C3B02L-2X/G24K0/A1M
0811404600	4WRPEH6C3B04L-2X/G24K0/A1M
0811404601	4WRPEH6C3B12L-2X/G24K0/A1M
0811404602	4WRPEH6C3B24L-2X/G24K0/A1M
0811404746	4WRPEH6C5B40L-2X/G24K0/A1M
0811404642	4WRPEH6C3B15P-2X/G24K0/A1M
0811404643	4WRPEH6C3B25P-2X/G24K0/A1M
0811404644	4WRPEH6C3B40P-2X/G24K0/A1M
0811404648	4WRPEH6C5B40P-2X/G24K0/A1M
0811404631	4WRPEH6C3B04L-2X/G24K0/F1M
0811404632	4WRPEH6C3B12L-2X/G24K0/F1M
0811404633	4WRPEH6C3B24L-2X/G24K0/F1M
0811404634	4WRPEH6C3B40L-2X/G24K0/F1M
0811404749	4WRPEH6C5B40L-2X/G24K0/F1M
0811404641	4WRPEH6C4B02L-2X/G24K0/A1M
0811404610	4WRPEH6C4B04L-2X/G24K0/A1M
0811404611	4WRPEH6C4B12L-2X/G24K0/A1M
0811404612	4WRPEH6C4B24L-2X/G24K0/A1M
0811404613	4WRPEH6C4B40L-2X/G24K0/A1M
0811404738	4WRPEH6C1B40L-2X/G24K0/A1M
0811404645	4WRPEH6C4B15P-2X/G24K0/A1M
0811404646	4WRPEH6C4B25P-2X/G24K0/A1M
0811404647	4WRPEH6C4B40P-2X/G24K0/A1M
0811404601	4WRPEH6C3B12L-2X/G24KO/A1M
0811404600	4WRPEH6C3B04L-2X/G24KO/A1M
0811404602	4WRPEH6C3B24L-2X/G24KO/A1M
0811404604	4WRPEH6KB50P-2X/G24KO/A1M
0811404610	4WRPEH6C4B04L-2X/G24KO/A1M
0811404611	4WRPEH6C4B12L-2X/G24KO/A1M
0811404612	4WRPEH6C4B24L-2X/G24KO/A1M
0811404613	4WRPEH6C4B40L-2X/G24KO/A1M
0811404621	4WRPEH6C3B04L-2X/G24KO/B5M
0811404622	4WRPEH6C3B24L-2X/G24KO/B5M
0811404623	4WRPEH6C4B12L-2X/G24KO/B5M
0811404626	4WRPEH6C3B15P-2X/G24KO/B5M
0811104628	4WRPEH6K3B50P-2X/G24KO/A1M
0811404631	4WRPEH6C3B04L-2X/G24KO/F1M
0811404633	4WRPEH6C3B24L-2X/G24KO/F1M
0811404634	4WRPEH6C3B40L-2X/G24KO/F1M
0811404635	4WRPEH6C3B25P-2X/G24KO/B5M
0811404637	4WRPEH6C3B40P-2X/G24KO/B5M
0811404638	4WRPEH6C4B40L-2X/G24KO/A1V
0811404639	4WRPEH6CB40L-2X/G24KO/A1M
0811404640	4WRPEH6CB40L-2X/G24KO/F1M
0811404641	4WRPEH6C4B02L-2X/G24KO/A1M
0811404642	4WRPEH6C3B15P-2X/G24KO/A1M
0811404644	4WRPEH6C3B40P-2X/G24KO/A1M
0811404645	4WRPEH6C4B15P-2X/G24KO/A1M
0811404646	4WRPEH6C4B25P-2X/G24KO/A1M
0811404647	4WRPEH6C4B40P-2X/G24KO/A1M
0811404801	4WRPEH10C3B100L-2X/G24KO/A1M
0811404802	4WRPEH10C4B50L-2X/G24KO/A1M
0811404803	4WRPEH10C4B100L-2X/G24KO/A1M
0811404806	4WRPEH10CB100L-2X/G24KO/F1M
0811404808	4WRPEH10C3B50L-2X/G24KO/B5M
0811404809	4WRPEH10CB100L-2X/G24KO/A1M
0811404812	4WRPEH10C4B50L-2X/G24KO/B5M
0811404813	4WRPEH10C3B100L-2X/G24KO/B5M
0811404816	4WRPEH10CB50P-2X/G24KO/F1M
0811404817	4WRPEH10C3B100L-2X/G24KO/F1M
0811404819	4WRPEH10C3B50L-2X/G24KO/F1M
0811404820	4WRPEH10C1B50L-2X/G24KO/A1M
0811404821	4WRPEH10C1B100L-2X/G24KO/A1M
0811404822	4WRPEH10C3B5CP-2X/G24KO/A1M
0811404823	4WRPEH10C3B100P-2X/G24KO/A1M

Saar HK Electronic Limited
Add: Rm 1506,28# Moyu Rd,Shanghai,China,201805
Tel: +86-21-5956 1370
Fax:+86-21-5012 3536
Email: jason@hydraulicpumpvalve.com
Skype: jason.saar
Mobile/WhatsApp: +8613918187448

Product Tags:

4WRPEH6C4B12L-3X/M/24A1

Nippon Trochoid Oil Pump

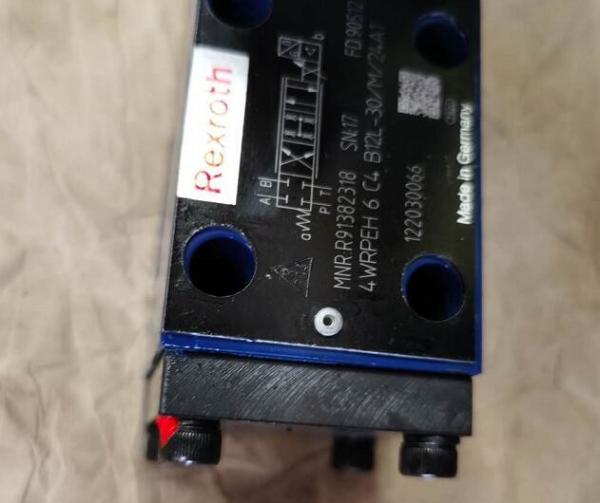

Rexroth R901382318 4WRPEH6C4B12L-30/M/24A1 Images
