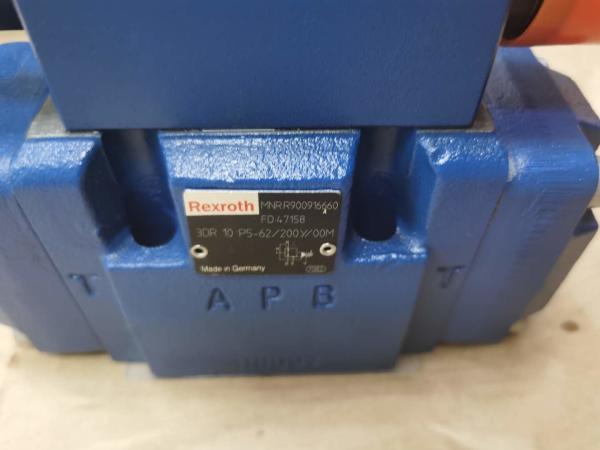

Pressure reducing valve, pilot-operated 3DR10P
Size 10
Component series 6X
Maximum operating pressure 315 bar
Maximum flow 120 l/min
Features
Valve for reduction (P to A) and limitation (A to T) of a system pressure
For subplate mounting, porting pattern according to DIN 24 340 form A, ISO 4401 and CETOP-RP 121 H, subplates (separate order)
4 pressure ratings
4 adjustment elements:
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale
Type Code
| 01 |
02 |
03 |
04 |
|
05 |
|
06 |
07 |
|
08 |
09 |
10 |
| 3DR |
10 |
P |
|
– |
6X |
/ |
|
Y |
/ |
00 |
|
* |
| 01 |
3-way pressure reducing valve |
3DR |
| 02 |
Size 10 |
10 |
| 03 |
Subplate mounting |
P |
| Adjustment element |
| 04 |
Rotary knob |
4 |
| Sleeve with hexagon and protective cap |
5 |
| Lockable rotary knob with scale |
6 1) |
| Rotary knob with scale |
7 |
| 05 |
Series 60 to 69 (60 to 69: unchanged installation and connection dimensions) |
6X |
| 06 |
Set pressure up to 50 bar |
50 |
| Set pressure up to 100 bar |
100 |
| Set pressure up to 200 bar |
200 |
| Set pressure up to 315 bar |
315 |
| Pilot oil flow |
| 07 |
Internal pilot oil supply, external pilot oil return |
Y |
| 08 |
With stroke limitation |
00 |
| 09 |
NBR seals |
M |
| FKM seals (other seals upon request) |
V |
| Observe compatibility of seals with hydraulic fluid used. |
| 10 |
Further details in the plain text |
* |
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Pressure reducing valve, pilot-operated 3DR10P on Sale, Short lead time, Best price!!!
| R900737366 |
3DR10P7-6X/200Y/00M |
| R900916657 |
3DR10P4-6X/100Y/00M |
| R900916657 |
3DR10P4-6X/100Y/00M |
| R900916659 |
3DR10P6-6X/100Y/00M |
| R900916660 |
3DR10P5-6X/200Y/00M |
| R900916661 |
3DR10P5-6X/315Y/00M |
| R900916663 |
3DR10P5-6X/100Y/00M |
| R900916663 |
3DR10P5-6X/100Y/00M |
| R900917784 |
3DR10P6-6X/315Y/00M |
| R900917785 |
3DR10P6-6X/200Y/00V |
| R900917786 |
3DR10P5-6X/100Y/00V |
| R900917786 |
3DR10P5-6X/100Y/00V |
| R900917787 |
3DR10P4-6X/200Y/00M |
| R900917787 |
3DR10P4-6X/200Y/00M |
| R900917788 |
3DR10P5-6X/200Y/00V |
| R900917790 |
3DR10P4-6X/315Y/00V |
| R900917790 |
3DR10P4-6X/315Y/00V |
| R900917791 |
3DR10P4-6X/315Y/00M |
| R900917791 |
3DR10P4-6X/315Y/00M |
| R900917792 |
3DR10P6-6X/200Y/00M |
| R900917793 |
3DR10P6-6X/100Y/00V |
| R900917794 |
3DR10P5-6X/315Y/00V |
| R900917795 |
3DR10P4-6X/100Y/00V |
| R900917795 |
3DR10P4-6X/100Y/00V |
| R900917796 |
3DR10P7-6X/100Y/00M |
| R900917797 |
3DR10P4-6X/200Y/00V |
| R900917797 |
3DR10P4-6X/200Y/00V |
| R900920718 |
3DR10P5-6X=50Y/00M=PL |
| R900920718 |
3DR10P5-6X=50Y/00M=PL |
| R900920719 |
3DR10P5-6X=200Y/00M=PL |
| R900920719 |
3DR10P5-6X=200Y/00M=PL |
| R900921663 |
3DR10P5-6X/50Y/00M |
| R900932005 |
3DR10P5-6X=100Y/00M=PL |
| R900932005 |
3DR10P5-6X=100Y/00M=PL |
| R900932324 |
3DR10P4-6X/50Y/00M |
| R900932324 |
3DR10P4-6X/50Y/00M |
| R900940485 |
3DR10P6-6X/100Y/00MSO23 |
| R900940485 |
3DR10P6-6X/100Y/00MSO23 |
| R900945112 |
3DR10P6-6X/50Y/00MSO23 |
| R900945112 |
3DR10P6-6X/50Y/00MSO23 |
| R900973873 |
3DR10P5-6X/50Y/00V |
| R901015252 |
3DR10P6-6X/50Y/00M |
| R901030861 |
3DR10P7-6X/200Y/00V |
| R901047460 |
3DR10P5-6X/100Y/00MSO189 |
| R901047460 |
3DR10P5-6X/100Y/00MSO189 |
| R901054790 |
3DR10P5-6X/100Y/00MSO63 |
| R901054790 |
3DR10P5-6X/100Y/00MSO63 |
| R901058305 |
3DR10P5-6X/200Y/00MSO189 |
| R901058305 |
3DR10P5-6X/200Y/00MSO189 |
| R901068395 |
3DR10P7-6X/100Y/00V |
| R901149319 |
3DR10P7-6X/315Y/00M |
| R901210096 |
3DR10P5-6X/315Y/00MSO63 |
| R901210096 |
3DR10P5-6X/315Y/00MSO63 |
| R901211014 |
3DR10P5-6X/200Y/00MSO63 |
| R901211014 |
3DR10P5-6X/200Y/00MSO63 |
| R901243542 |
3DR10P5-6X/50Y/00MSO63 |
| R901243542 |
3DR10P5-6X/50Y/00MSO63 |
